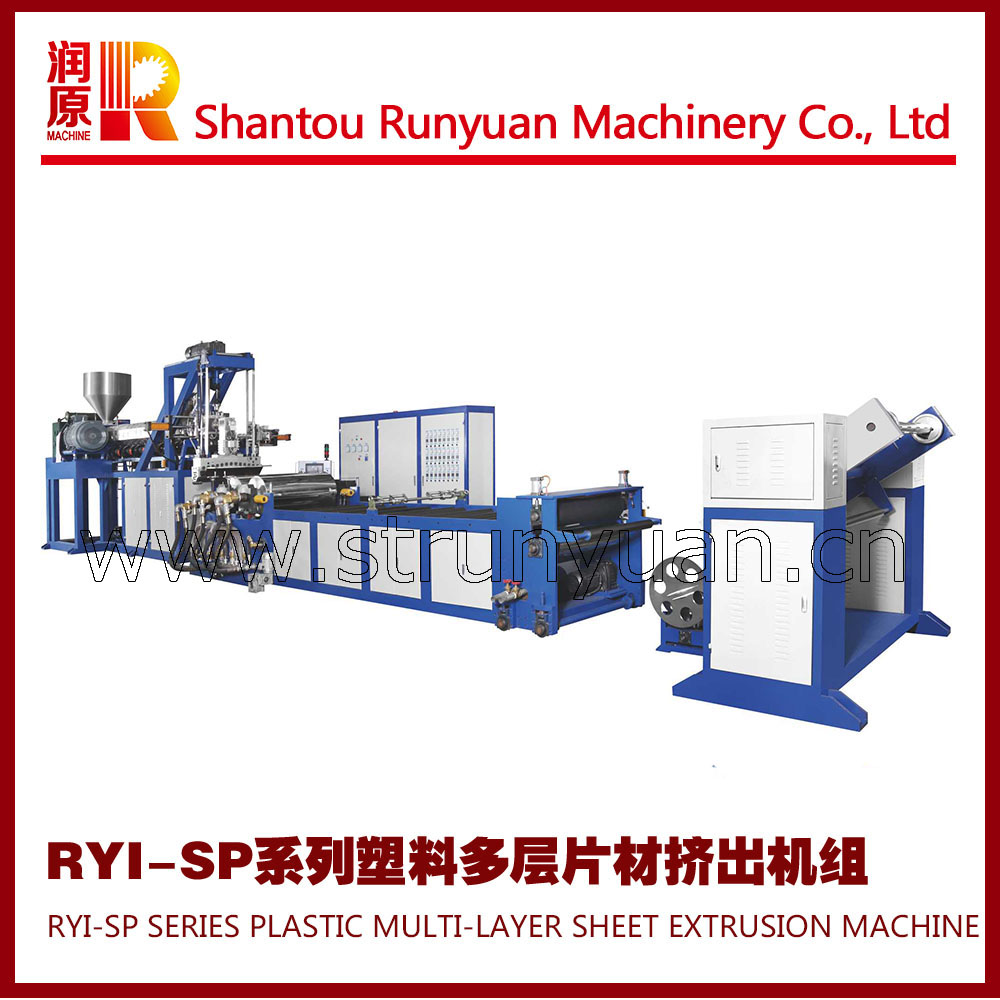

RYI-SP-900-120-90 Series Plastic Multi-Layer Sheet Extruding Machine
RYI-SP-900-120-90系列塑料多層共擠出片材機組
Structural characteristics 產品特性：
RYI-SP Series Plastic Sheet Extruding Machine is developed by the market demand. It is mainly applied to produce PP, PS, PE, HIPS sheet and etc.
·RYJ-SP系列塑料片材機組是我公司針對市場需求精心設計制造的，它主要適用于生產PP, PS, PE, HIPS等塑料片材。
The screw of the extruding machine uses big ratio of length and diameter. It has good forming effect, even sheet thickness and same running speed.
·擠出機螺桿采用*長徑比，具有塑化效果好，膜片厚薄均勻，流速一致等優點。
Bright surface of the pressing roller and even temperature of its surface to make sure that the sheet is clean and the thickness is equal.
·鏡面壓光輥，輥筒表層溫度均勻，使生產的片材光潔明亮，厚薄均勻。
This machine includes screw extruder, 3-roller calendar, traction rewinder.
·本套機組由擠出機、三輥壓延機、牽引收卷機組成。
Parameter 參數:
MODEL 型號 | |
Material 適用材料 | PP/PS/HIPS |
Roller Length 輥筒長度 | 500*900mm |
Sheet Width 片材寬度 | ≤800mm |
Sheet Thickness 片材厚度 | |
Screw Diameter 螺桿直徑 | |
Screw Length-Diameter Ratio 螺桿長徑比 | 34/30/30 |
Total Power 總功率 | 210KW |
Heating Power 加熱功率 | 70KW |
Maximum Output *產量 | 400kg/h |
Dimension 機器尺寸 | |
Three rollers controlled by three motors separately. 三輥由獨立電機控制 | |

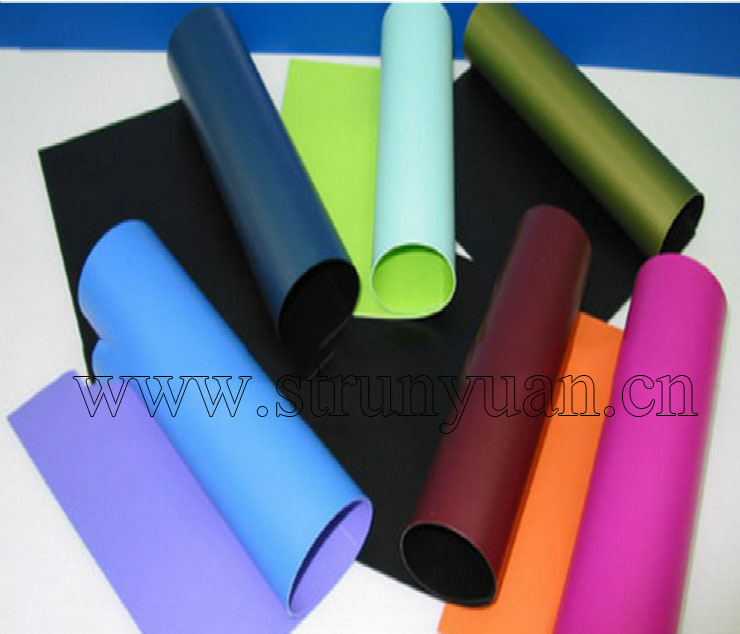

Samples Picture 樣品圖片:

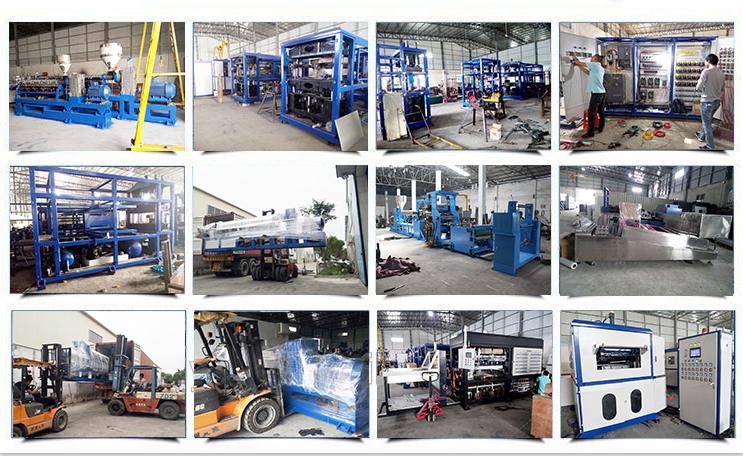

Factory Picture 工廠圖片:
